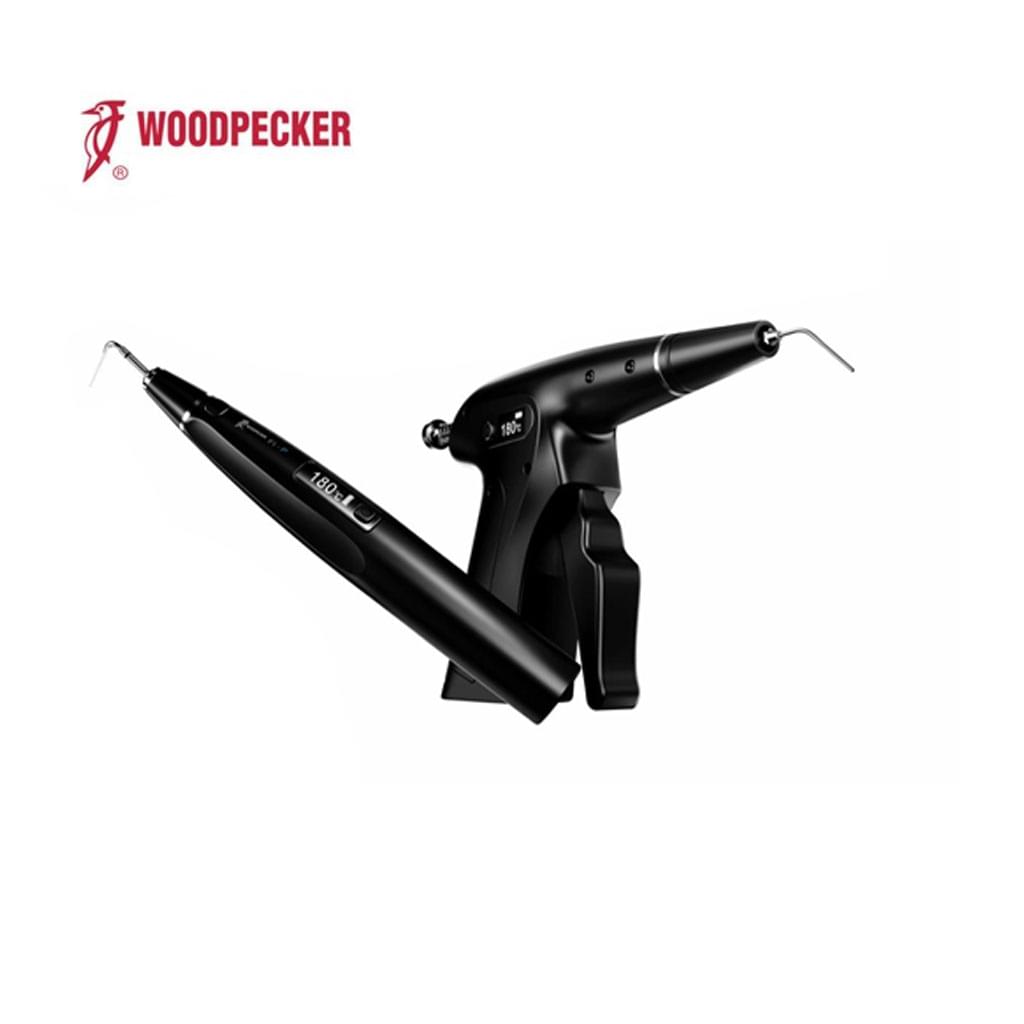

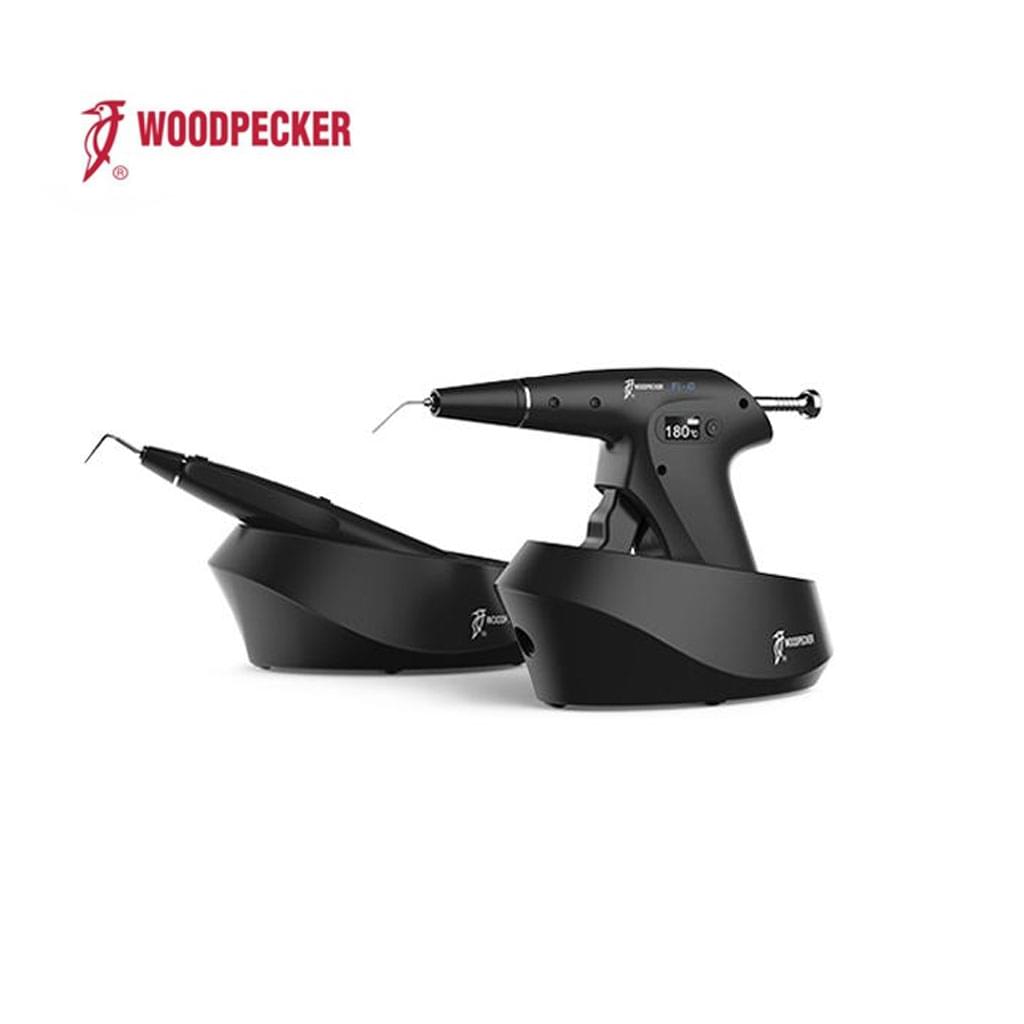

Woodpecker Obturation System (Gutta Percha Obturation System)
₨195,000.00
Description:
Rapid Heating System
- Heat up to 200°C within 15s
Four Preset Temperature
- 150°C, 180°C, 200°C, 230°C
Left And Right Display Screens
- According to using habit, choose correspondent screen.
Ergonomic Design
- Comfortable holding felling
Japan Panasonic Cell
- The Battery is reliable and durable for operation
Functions:
Soften root canal filling material during root canal filling operation.
Diffuse the root canal filling material to the lateral branch root canals and the lower part of the root canal.
Cutting the root canal filling material.
Make the filling material closer by heating and pressing.

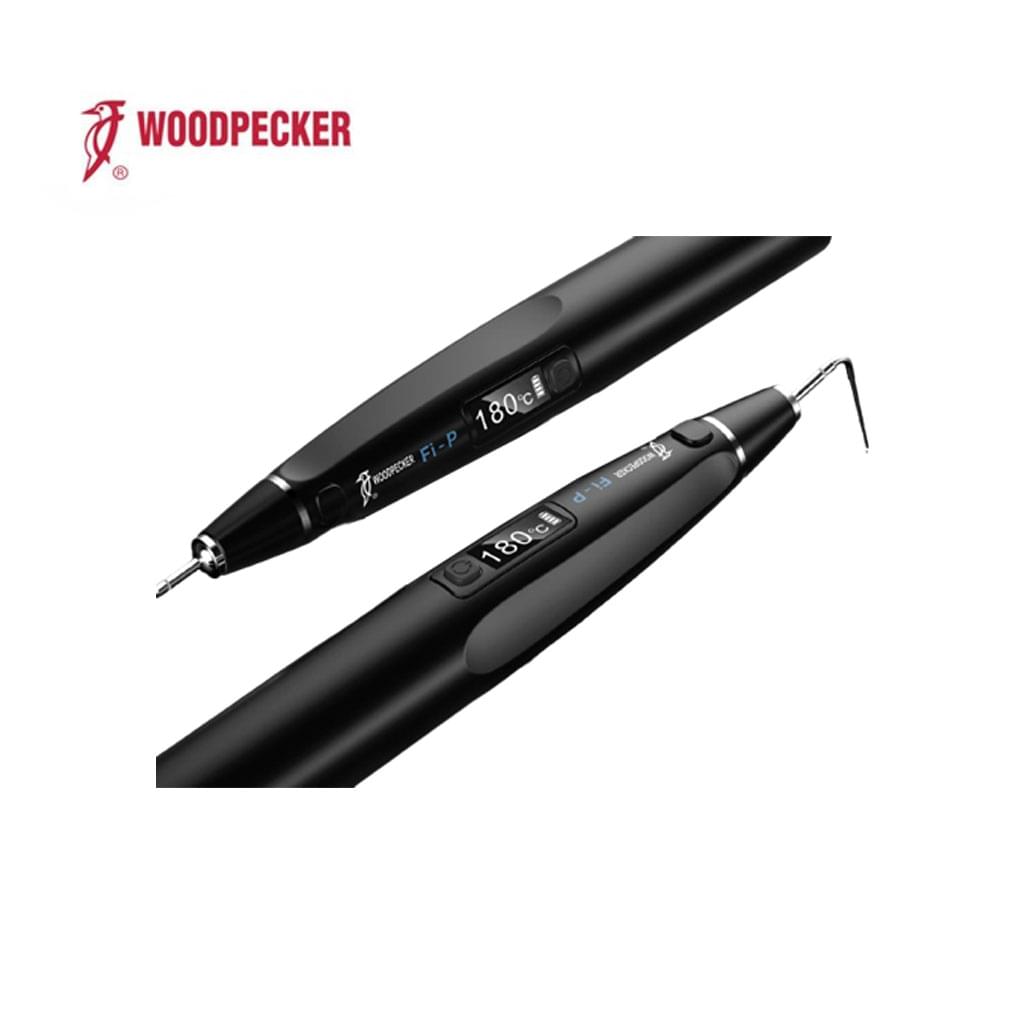

FI-P:
FI-P adopts wireless, horizontal type, temperature adjusting, and right and left hand operation design, endowing it with outstanding function and characteristics.
Product Feature
- Adopt wireless and light weight ergonomic design which makes it easy for use, cleaning and storage.
- Both visual and auditory prompt for safe operation.
- Six assembling directions of tips are for options.
- Displayed battery level, temperature and status on screen.
- Through heating and vertical pressing. Optimally fill all the root canals including lateral branch root canal.
- Different sizes of tips are for options.
- Tips with different sizes are easy to identify as tips are marked with rings of different colors.
Technical specifications:
| Product
|
Fi-P
|
| Classification
|
Class ll (AC/DC power adpter) |
| Available temperature
|
150°C-> 180°C -> 200°C ->°C |
| Time consumption for charging | About 2.5h (3 hours are needle for the first changing) |
| Duration after full charging | If each operation lasts for 5s, it can work for 500 times. |
| Power supply | Input : AC100V – 240V 50/60Hz 500-800mA
Output: DC15/1.6A. |
| Battery capacity | Chargable battery: 200mAh |
| Size | Fi-P: 23.8mm * 158.3mm * 23.8mm
Changing base: 75.5mm * 149.7mm * 62.6mm |
| Weight | Fi-P: 80g
Charging base: 195g Power adapter: 167g. |
| Storage conditions | Temperature: : -20°C~ 55°C
Humidity: 10% ~ 93% Pressure: 70kPa~ 106kPa. |
| Temperature conditions | Temperature: -20°C ~ 55°C
Humidity: 10% ~ 93% Pressure: 70kPa ~ 106kPa. |
FI-G:
FI-G adopts wireless, vertical type and single button design bringing easier obturation operation.
Features
- Adopt wireless ergonomic design which make it easy for use, cleaning and storage.
- Four preset temperature, accurately control the filling quantity.
- The needle processed by special technique is duarable. It can be bent and can be rotated 360,
which make it easy to reach the desired part and get the fastest and most suitable effect. - Adopt single button control, enabling easier operation.
- Safe protection system; ten minutes after operation, the device will automatically poer off.
Technical specifications:
| Product
|
Fi-P
|
| Classification
|
Class ll (AC/DC power adpter) |
| Available temperature
|
150°C-> 180°C ->200°C->230°C |
| Time consumption for charging | About 2.5h (3 hours are needle for the first changing) |
| Duration after full charging | If each operation lasts for 10 minutes, it can work for 10 times. |
| Power supply | Input : AC100V – 240V 50/60Hz 500-800mA
Output: DC15V/1.6A. |
| Battery capacity | Chargeable battery: 200mAh |
| Size | Fi-G: 31.9mm * 152.5mm * 114.9mm
Changing base: 75.5mm * 149.7mm * 62.6mm |
| Weight | Fi-P: 170g
Charging base: 207g Power adapter: 167g. |
| Storage conditions | Temperature: : -20 °C ~ 55 °C
Humidity: 10% ~ 93% Pressure: 70kPa ~ 106kPa. |
| Temperature conditions | Temperature: -20 °C ~ 55 °C
Humidity: 10% ~ 93% Pressure: 70kPa ~ 106kPa. |
Brand
Wood Pecker
